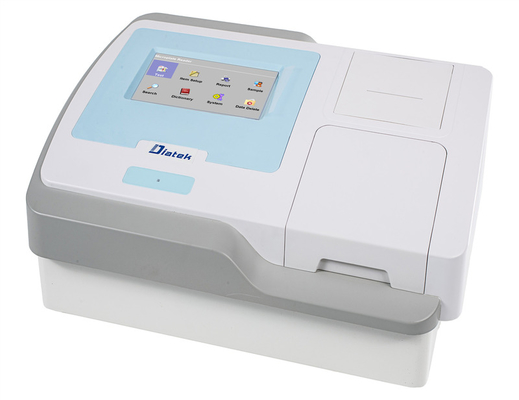

Home /Products/Elisa Reader Machine/Online Update Software China Manufacture Best Quality Elisa Reader Clinical Laboratory Microplate Reader Elisa Reader

Online Update Software China Manufacture Best Quality Elisa Reader Clinical Laboratory Microplate Reader Elisa Reader

1 Set
MOQ
$900.00(1 - 2 Sets) $880.00(3 - 4 Sets) $850.00(>=5 Sets)
Price
Online Update Software China Manufacture Best Quality Elisa Reader Clinical Laboratory Microplate Reader Elisa Reader
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Immunoassay System
Model Number: DR-200Bc
Instrument Classification: Class II
Warranty: 1 Year
After-sale Service: Online Technical Support
Display: 7 Inch Color Touch Screen
Operation System: Intelligent System
Language: Englsh. Chinese,Spanish ,Russian
Function: Update Software Online
Wavelength: 400-800nm
Standard Filters: 405,450,492,630nm
Extra Filters Position: 4 Position
Certificate: ISO9001 ISO13485 CE
Power Supply: AC100-240V 50/60HZ
Reagent: Open System
Basic Infomation
Certification: ISO9001 ISO13485 CE
Model Number: DR-200Bc
Payment & Shipping Terms
Packaging Details: DOUBLE CARTON PACKING
Product Description
Product Description


Product Advantage


* Brand-new shell and new operation system

* Can update the software online

* Touch screen,7" high resolution LED display

* 8 channel optical fiber scanning

* Single or dual wavelength measurements

* Performing 12 different tests just in one plate

* Extensive report with patient information

* Auto Lamp adjustment and auto calibration

* Stable memory stores up to 200,000 test data,500 test projects

* User-friendly, easy to programme and can update software online

* Easy connect to PC , provide DIATEK ELISA Reader software


Main Specification


Microplate types: 96/ 48 -well plate

Photodetector: Silicon Photodiode

Light source: 8v/50w Controlled tungsten halogen lamp

Wavelength range: 400nm~850nm

Standard filters: 405,450,492,630nm & 4 optional

Reading range: 0.000~4.000A

Resolution: 0.001A

Accuracy: ±0.008A

Reproducibility: ≤0.2%

Stability:±0.003A

Reading Speed : Single Wavelength≤3s ;Double Wavelength≤6s

Shaking: Linear Shaking , 3 speeds

Printer :Built-in Thermal Printer,optional external printer

Interface connections: 2×USB-A,1×USB-B,1×RS-232, 1×Printer

Power supply: 100~240V, 50~60Hz

Dimensions: 475(L)×350(W)×210(H)mm

Net weight: 11.5kg

Product Details

①Power indicator light : After the instrument is power on, the indicator light is lit.

②Touch screen: Show software interface. Users can press the screen with fingers for variable operation

③Internal thermal printer: Plastic cover plate. Paper delivery when using internal thermal printer. You can open the cover plate
to replace paper.

④ELISA plate cover plate: Plastic cover plate. Prevent dust from polluting inner space of ELISA plate and instrument.


①Power disconnecting switch: Turn on or turn off the power supply.

②Power supply socket: Connect AC power line.

③Fuses: If no power after turning on power supply switch, check the fuses.

④Hinges: Connect bottom shell and top cover.

⑤Parallel port : It is used for connecting parallel printer.

⑥USB -B interface: It is used for connecting PC computer.

⑦USB -A interface: It is used for connecting mouse & keyboard .

⑧RS-232 Serial port :It is used for connecting PC computer.

⑨USB -A interface: It is used for updating motherboard firmware.

⑩Nameplate: Show instrument model, specification etc.

Details Images
Packing & Delivery
Company Profile

Wuxi Hiwell Diatek Instruments Co.,Ltd was founded in 2003,relying on the Huawen Group's capital, technology and talent advantages, focusing on reasearching medical instruments.

We are a professional manufacturer of Clinical Medical Instruments like Elisa Reader , Elisa Washer and Biochemistry Analyzer for decades .During more than 10 Years' persistence and hard working, Diatek got a great process in the clinical laboratory area and have sold elisa equipments to some countries.


Certifications
FAQ


Q1:Are you the manufacturer or the trading company?
We are the experienced manufacturer of Medical Instruments, especially for the ELISA reader , Microplate Washer, Biochemistry
Analyzer and etc. We have got the self-support imports and exports right.

Q2:What is your advantage compared with other medical instruments manufacturers?
We are expert at making medical machines for almost 20 years and we have a professional technical team who can provide special
customer requirements,so that we are able to make machines with high quality and reasonable price.

Q3:What kind of service can you offer?
Design with your requirements by professional team.
ISO 9001,ISO 13485 certificates and letters patent Engineers go overseas for training.

Q4:How to check my order at last?
We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come
here, we can also take photos and videos for your conformation.


Contact

Contact : Jessy Zhao


Wuxi Hiwell Diatek Instruments Co., Ltd.
Add: NO.22 Lu'ou Road, Hudai Industrial Park,Binhu District, Wuxi City, Jiangsu Province, China
Website: www.diateklab.com
E-mail: sales@diateklab.com
Mobile/WhatsApp: +86 17515074925
