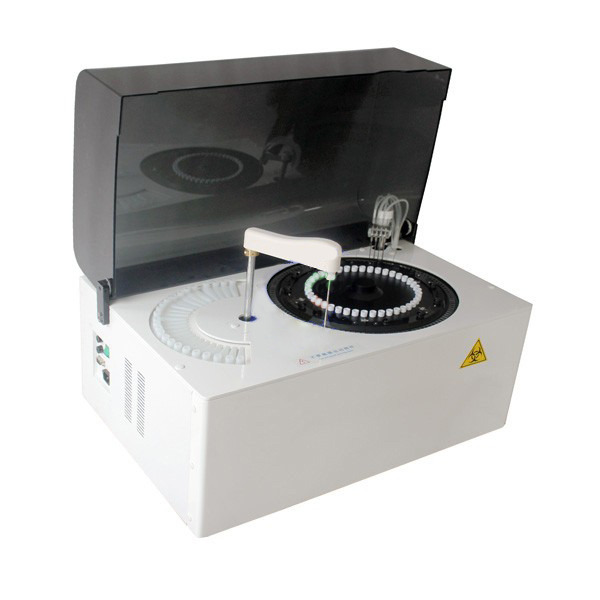

Human Fully Automated Clinical Blood Chemistry Analyzer , Blood Analyzer Machine MCL-BA002

1.0 Units
MOQ
Human Fully Automated Clinical Blood Chemistry Analyzer , Blood Analyzer Machine MCL-BA002
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Biochemical Analysis System
Model Number: MCL-BA002
Instrument Classification: Class II
Warranty: 1 Year
After-sale Service: Online Technical Support
Fully Automatic Biochemistry Analyzer: 60 Sample Positions, Random Access Of All Samples
200 Tests Clinical Chemistry Analyzer: 2-50ul, 0.1ul Increment
Sample Probe: Liquid Level Detection, The Remaining Detection, Collision
Reagent Tray: 45 Reagent Positions
Reaction Tray: Rotating Tray, 120 Cuvettes
Reaction Volume: 180-500ul
Incubation System: Bi-directional Liquid-air Device
Temperature: 37℃±0.1℃ With Real-time Display
Resolution: 0.0001Abs
Biochemistry Analyzer Price: 15-30 ℃
Basic Infomation
Model Number: MCL-BA002
Payment & Shipping Terms
Product Description

Human Fully Automated Clinical Blood Chemistry Analyzer

Model: MCL-BA002
Features

Liquid level sense system
1. The probe has the coat of TFL can reduce across-polluter evidently.
2. The system solves the problem of reaction cups thoroughly by the particular design which got rid of washing system.
3. The urgent sample can be tested preferentially at any time.

Washing Station
1. 8 washing needles connected with 4 pumps.
2. high pressure water or cleaning liquid
3. Synchronous and in time with the test.

Cold Storage and Calefaction System
1. The sample and reagent can be hold longtime stabilization by semiconductor refrigeration.
2. The analyzer can lodge 60 sample cups and 45 reagent bottles.
3.The intelligent temperature system will heat up the reaction solution to the appropriate reaction temperature(37℃±0.1)

Optical System
1. The system includes light filter, optical fiber, 120 reaction bottles and photoelectric receiver which are imported.
2. Reaction time is about 10 minutes.
3. The point of reading can be set freely.

Operation System
1. The software uses the language of Chinese or English.
2. The function include testing calculations, sample blank correction, correlative, panic, dynamic and repeat run range judgments;
reagent absorbance and reaction mixture absorbance check; abnormal value, pending and repeat run lists; report format printing.
Parameter
Test speed
160 tests /hour
Assay types
End-point Assay, Rate Assay, Fixed-point Assay...
Cuvette
120 reaction bottles; optical length:6mm
Sample Tray
49 non-fixed positions for various samples
Reagent Tray
6 positions for reagent bottles
Power supply
AC 220V±22V, 50Hz±1Hz, power 1.5KVA
Ambient Temperature
15-30 ℃
Humidity
35-80%
Water consumption
5L/Hour
Dimension Bench top
750mm*520mm*600mm
Other Products
Details Images

Overall Performance

Equipment type Fully automatic discrete, STAT priority
Analysis rate Constant speed 160T/H (without ISE)
Test principle Colorimetry, turbidimetry
Analysis method End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration

Sample System

Sample Tray 42 sample positions, random access of all samples
Sample Volume 2-50ul, 0.1ul increment
Sample probe Liquid level detection, the remaining detection, collision protection etc.
Sample Containers Sample cups, Micro tube, Original blood-collection tube, etc.

Reagent System

Reagent Tray 25 reagent positions
Reagent Volume R1:25-300ul, R2:10-150ul, 0.1ul increment
Reagent Probe Liquid level detection, the remaining detection, collision protection etc.
Reagent Refrigeration 4-15℃, independent power supply, 24-hour non-stop refrigeration

Reaction System

Reaction Tray Rotating tray, 120 cuvettes
Cuvette Reusable high quality cuvette, Optical diameter 6mm
Reaction Volume 180-500ul
Incubation system Bi-directional liquid-air device
Temperature 37℃±0.1℃ with real-time display

Optical System

Light source 12V35W halogen lamps, over 2000 hours
Photoelectron road after spectrophotometry
Wavelength 340,405,450,510,546,578,630,700nm
Absorbance range 0-3.500Abs
Resolution 0.0001Abs

Operating System

PC operating system Windows XP or above
Analysis control software English version graphical operating software
Report printing Report formats support the user-defined mode, QC and state information etc.
System connection RS-232
